Wireless fire/first aid system - how to use

Consists of the following three parts

Call Point	Base Station	Heat or Smoke Detector

• Network Up to 240 units

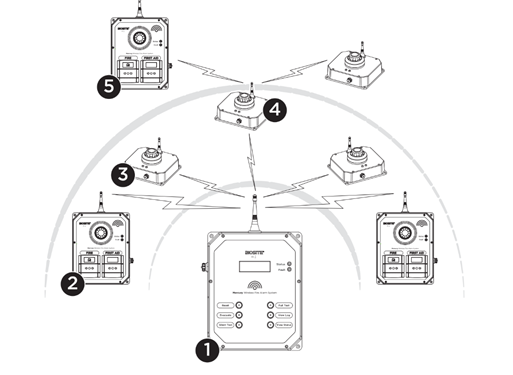

• Mesh Network two way communication & piggy back to the base station
• Zones Whole or part of the site can be evacuated
• Units have identifying numbers on the left hand side of the unit

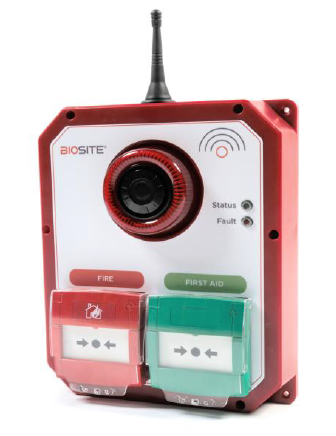

Call Point - fire and first aid

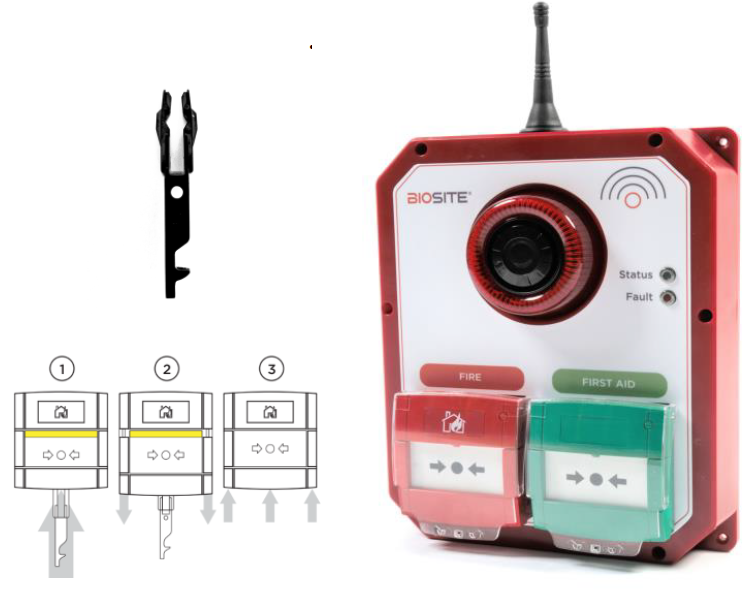

• To reset the call point insert the reset key on the underside of the call point then slide the cover down and then up again

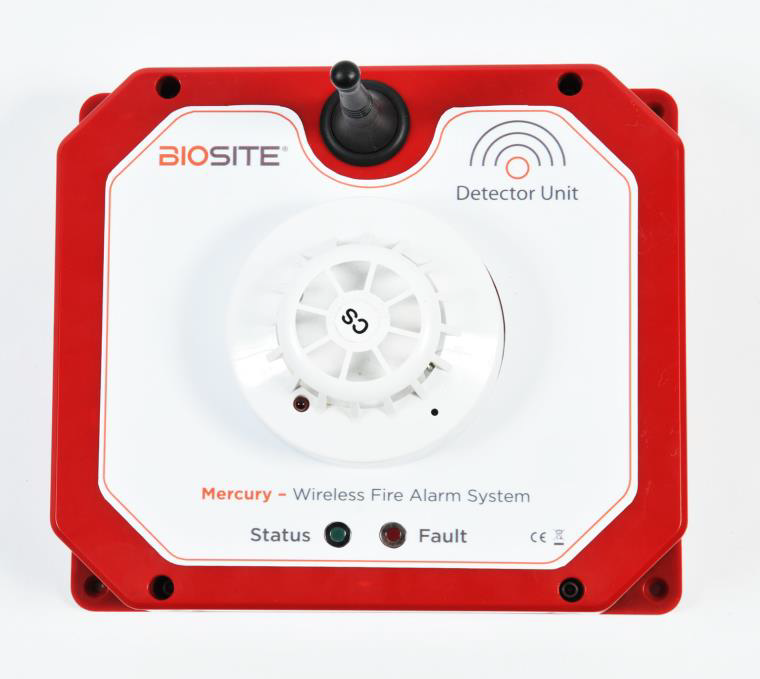

Heat/Smoke Detector

• If activated must be reset from the base station
• Should be fitted on ceilings as heat and smoke rise

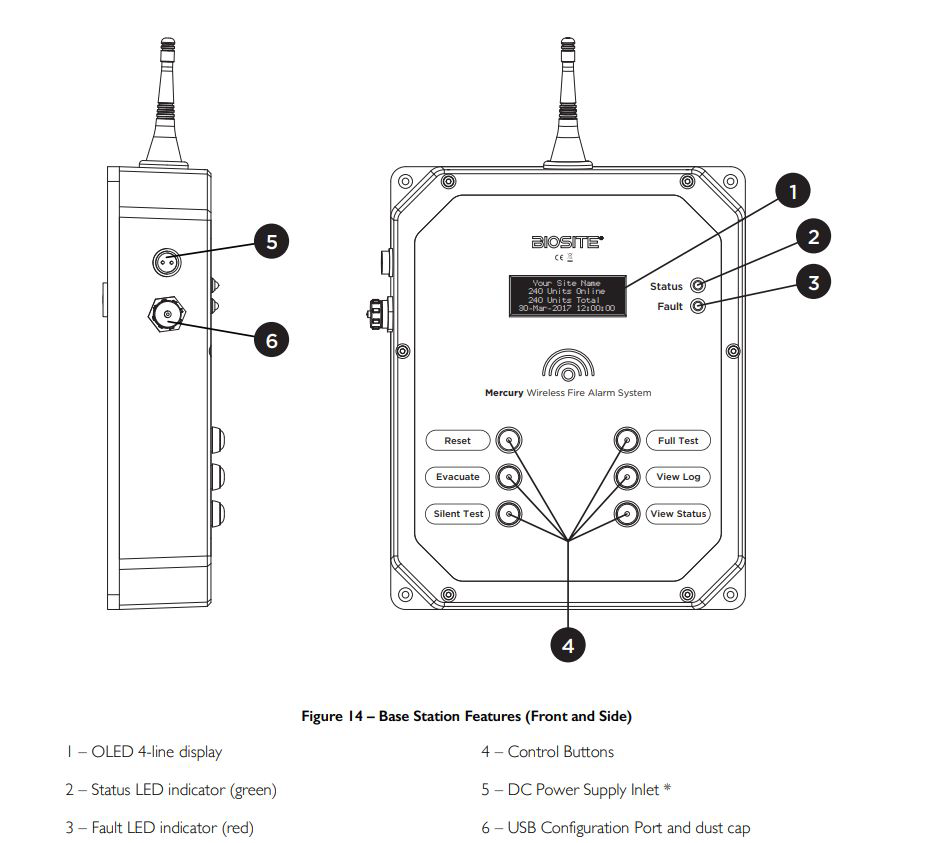

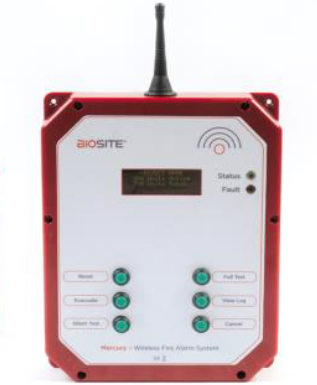

Base Station

Base station requires a constant power supply

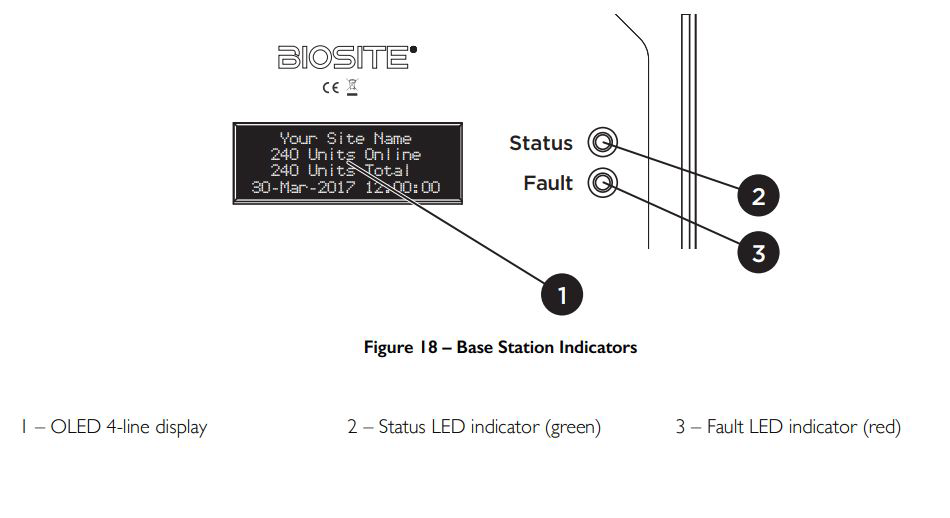

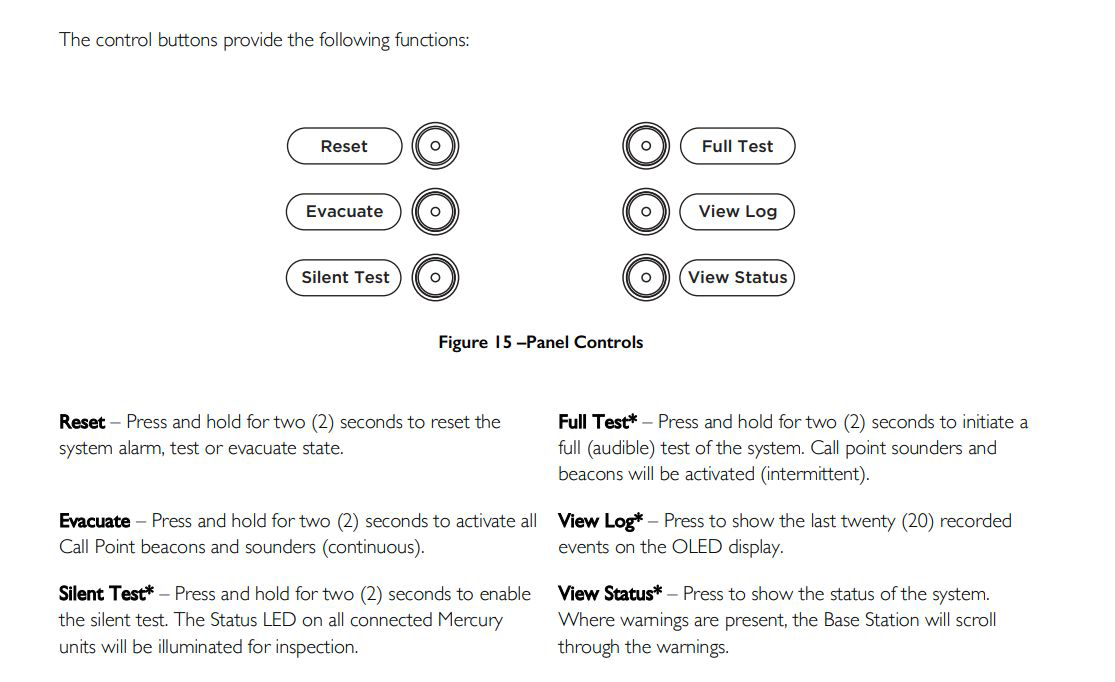

Base Station status

• Constant display of units online & site name

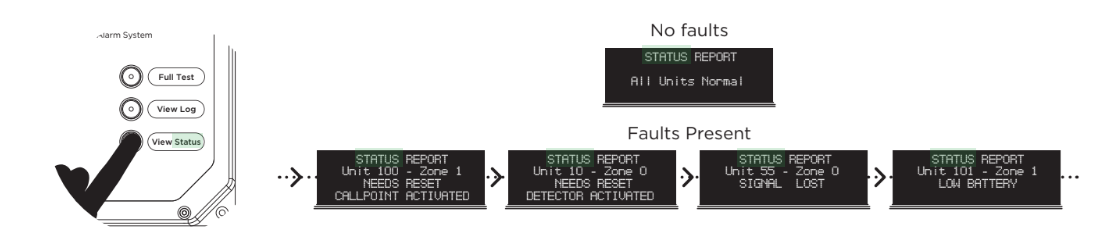

• Pressing the ‘view button displays any faults in the system e.g. needs reset, signal lost or low battery
