Site PC - Overview - How to use

  • Updated

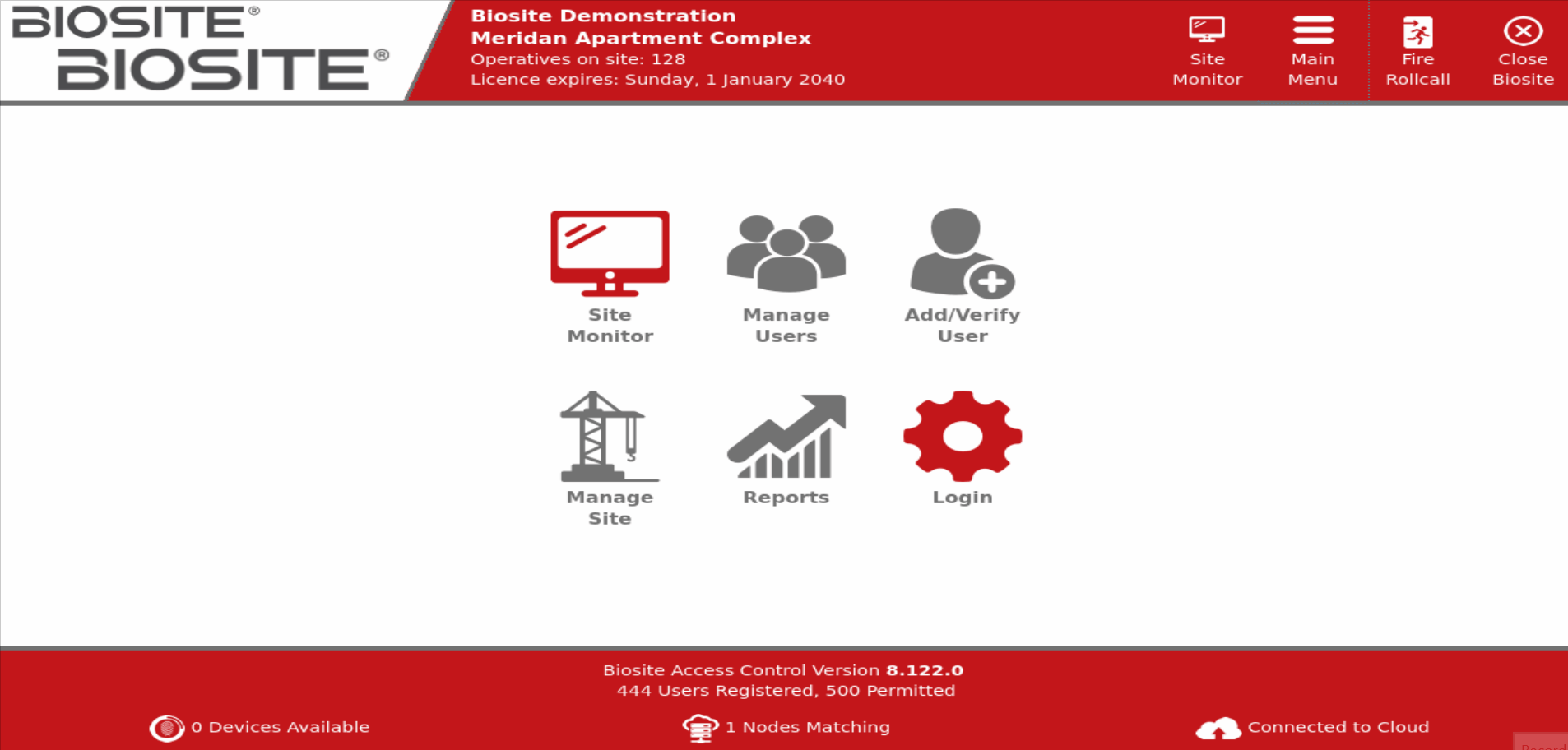

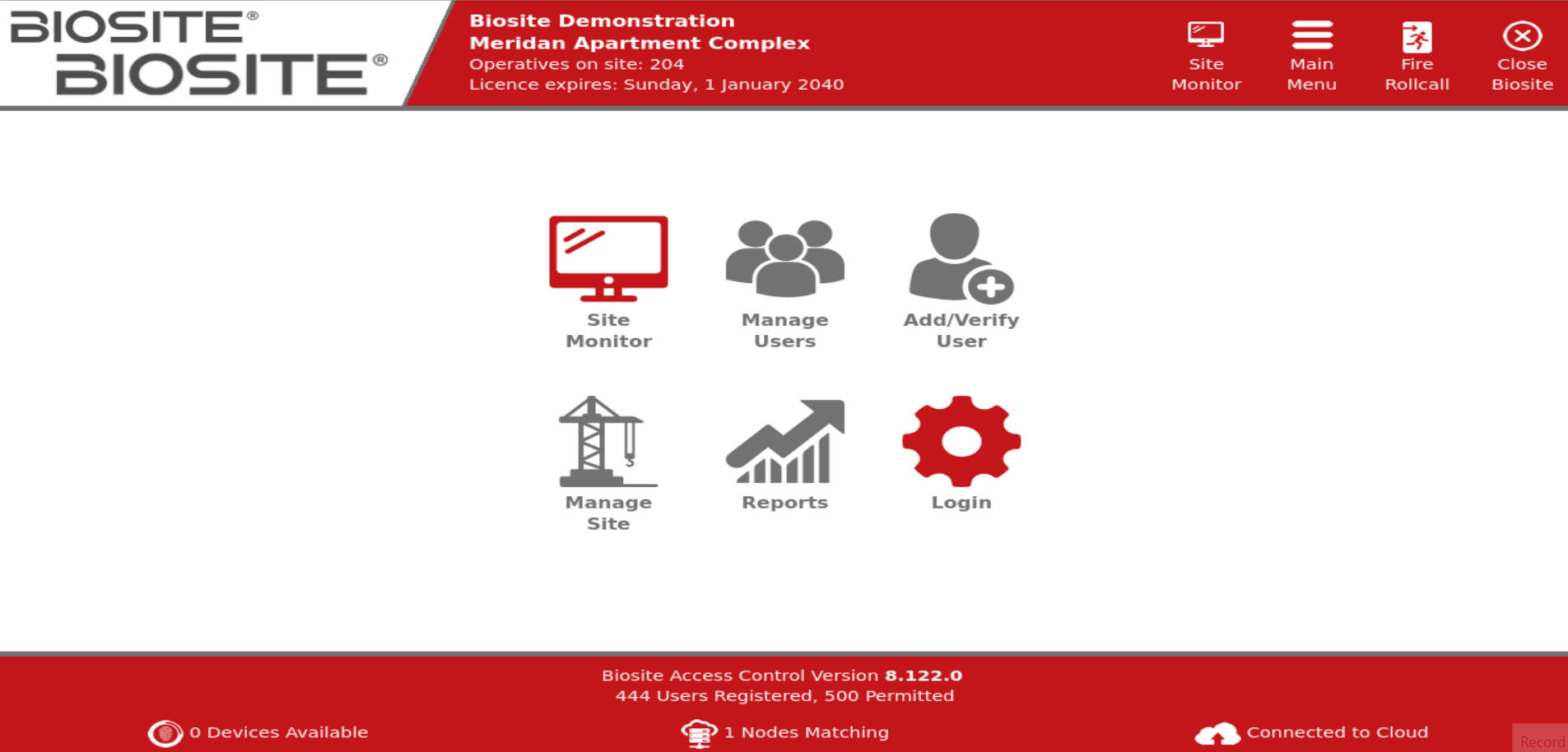

Main Menu

Top Left of screen displays:

Operatives on Site, Site Name & Licence expiry date
Top Right of the screen:

Site Monitor, Main Menu, Fire Rollcall & Close Biosite
Bottom Left of Screen:

Available Devices
Bottom centre of the screen:

Registered Users, Total Permitted Users & Software Version
Bottom Right of the screen:

Internet Connection Status

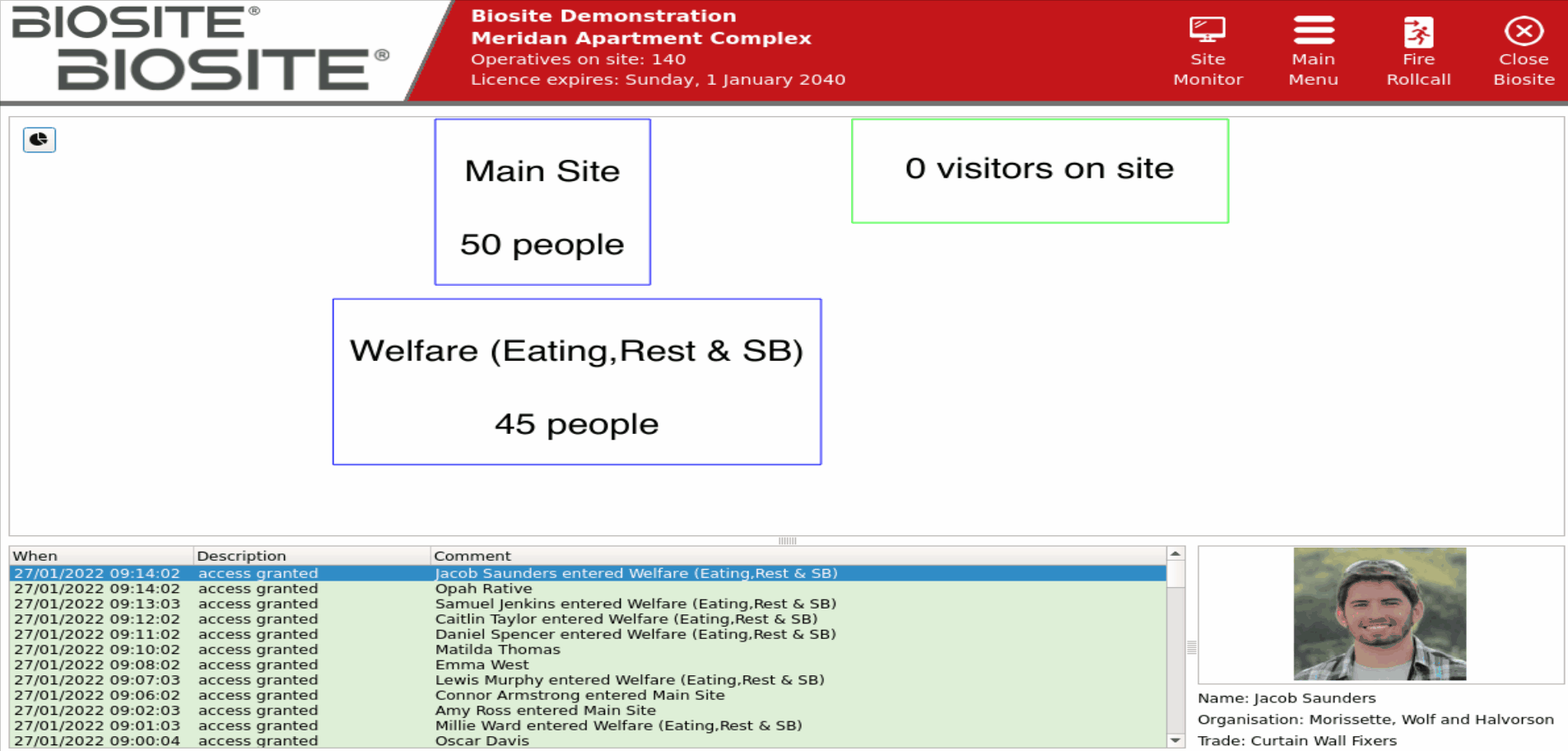

Site Monitor

Site monitor information is available without logging in

From the Main Menu select either of the two Site Monitor icons


  • The first page displays the numbers on site, if you have more than 1 zone  you will also see the zone breakdown
  • The bottom half of the screen displays access events.



Access Events

The access events show when operatives have entered or left the site.

Events Colour Meaning Usual Event
Green Access Granted shows when a user has successfully entered or left the site via your access control.
Red Access Denied displays when a user has been restricted from accessing the site by report card or holding pen.
Amber User Not recognised shows when a user attempts to access the site however they have not been recognised
Blue Manual Movement/Auto Clockout shows when a user has been automatically clocked out or manually moved from the zone



  • Clicking on each line will display the operative's photo, name, organisation, and trade.




Site Dashboard

Click on the top left icon - the site dashboard will display

The dashboard will show the:

  • Top 10 basic trades currently on site
  • Top 10 organisations currently on site
  • The number of operatives on site and which zone they are in

The bottom section of the screen displays the number of:

  • First Aiders currently on site
  • Fire Marshalls currently on site
  • SSSTS or equivalent qualified operatives currently on site
  • SMSTS or equivalent qualified operatives currently on site




Logging In

Usernames and passwords are case-sensitive.

If you have a portal account with sufficient permissions you will be able to log into the local system with the same details (usernames and passwords are case-sensitive)

User guide available via the below link



If you would like to receive any further training on how to use our Site PC (local system), please contact sales-admin@biositesystems.com
