Facial Recognition Cameras - Camera bracket assembly

Biosite Systems camera bracket is made of two separate parts, the metal housing and mounting plate with joint.

The bracket can be assembled in two variants based on the alignment of the mounting plate.

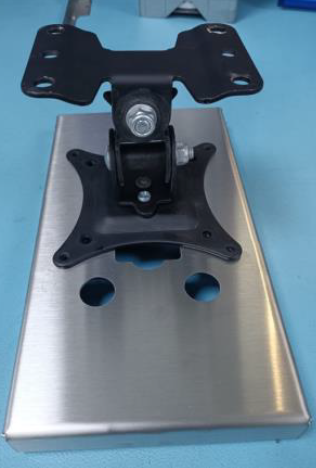

Vertically

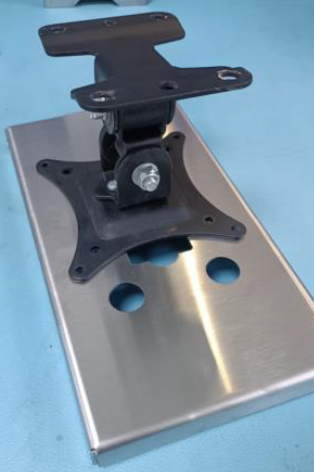

Horizontally

Vertical / Horizontal swap

To change the variant of the bracket follow the steps below:

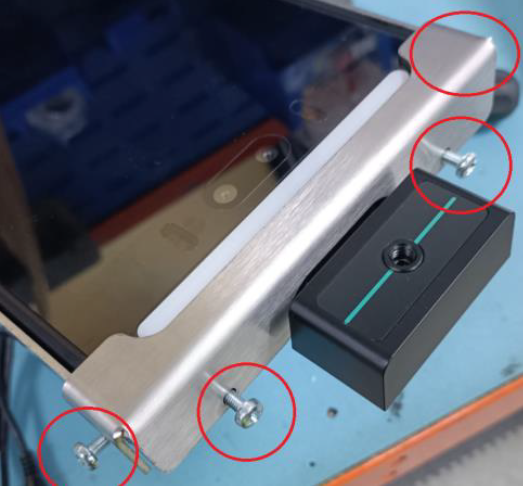

1. Remove the 4 screws at the top of the camera assembly.

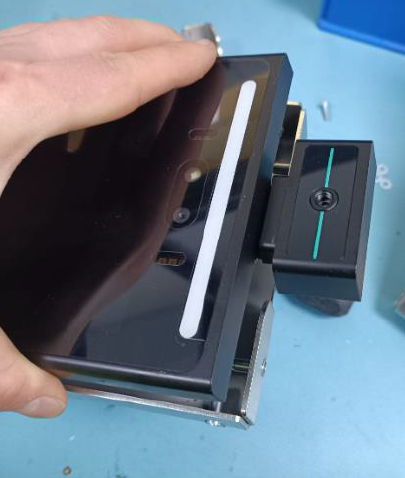

2. Remove the camera from the metal housing.

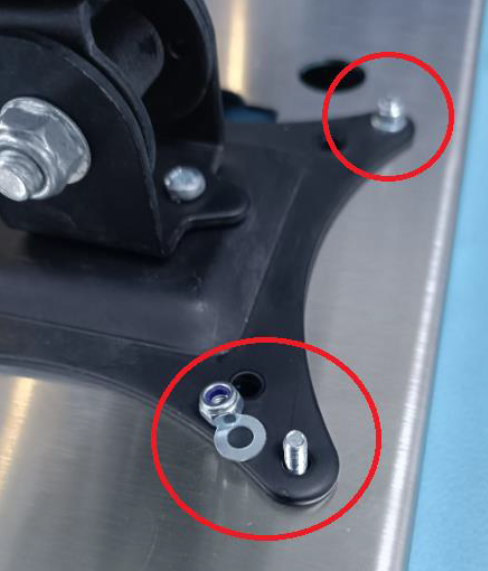

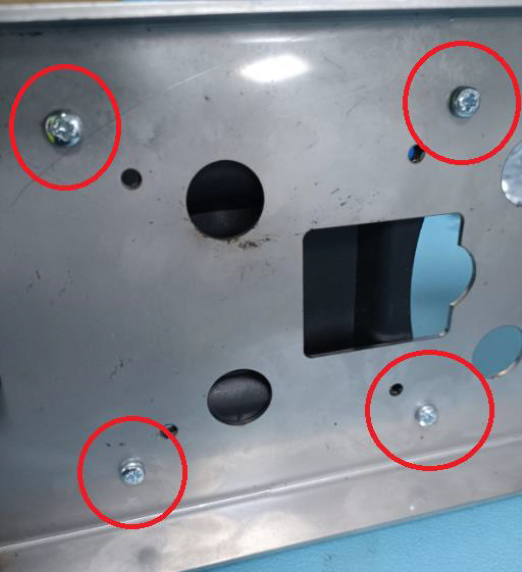

3. Undo 4 bolts securing the housing to the black plate.
4. Rotate the metal housing 90 degrees to desired position and reverse the steps.

If you would like any further assistance on how to use the facial camera brackets please contact installation@biositesystems.com
