Turnstiles - Troubleshooting - Tripped fuse

A common reason why Biosite Systems turnstiles may go offline are caused by a tripped fuse.

There are several areas where you need to check for tripped fuses.

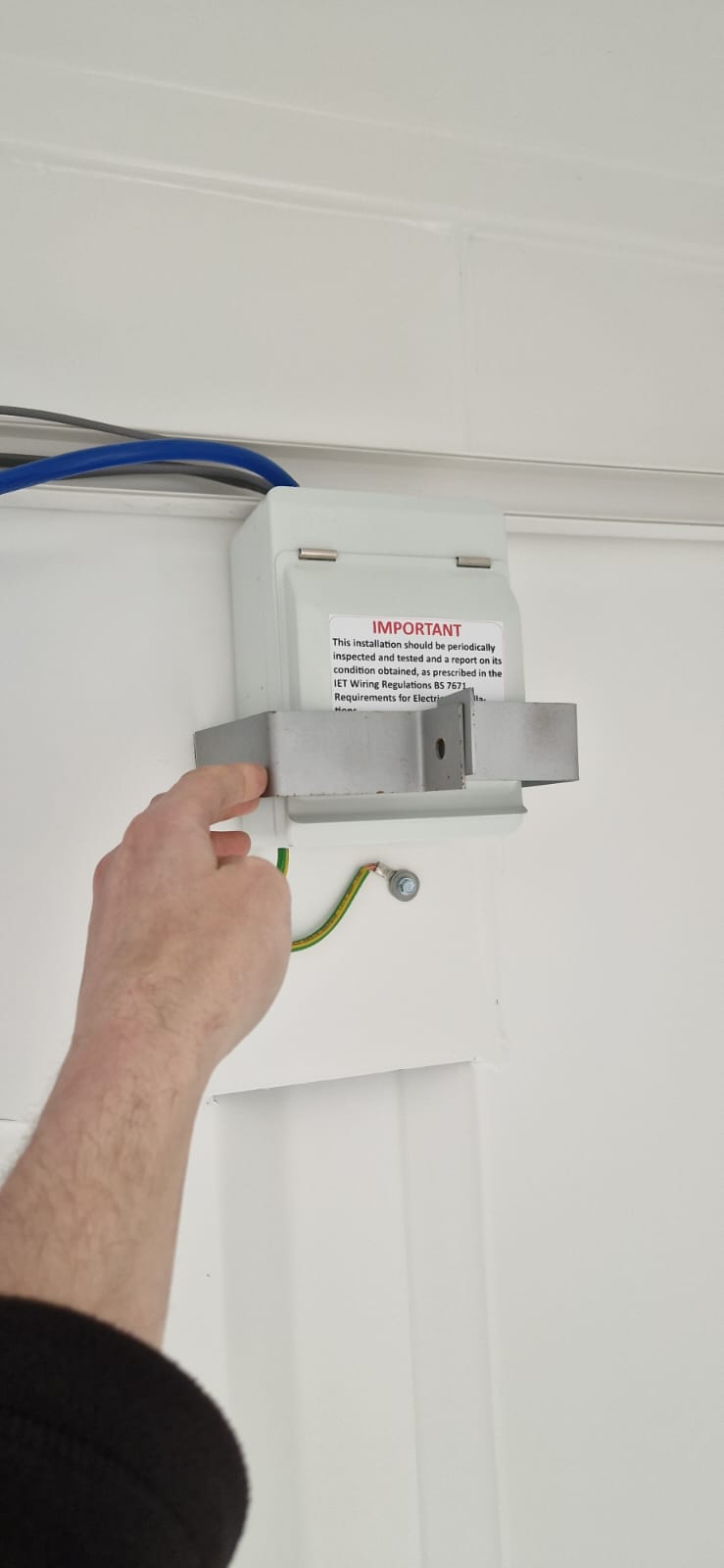

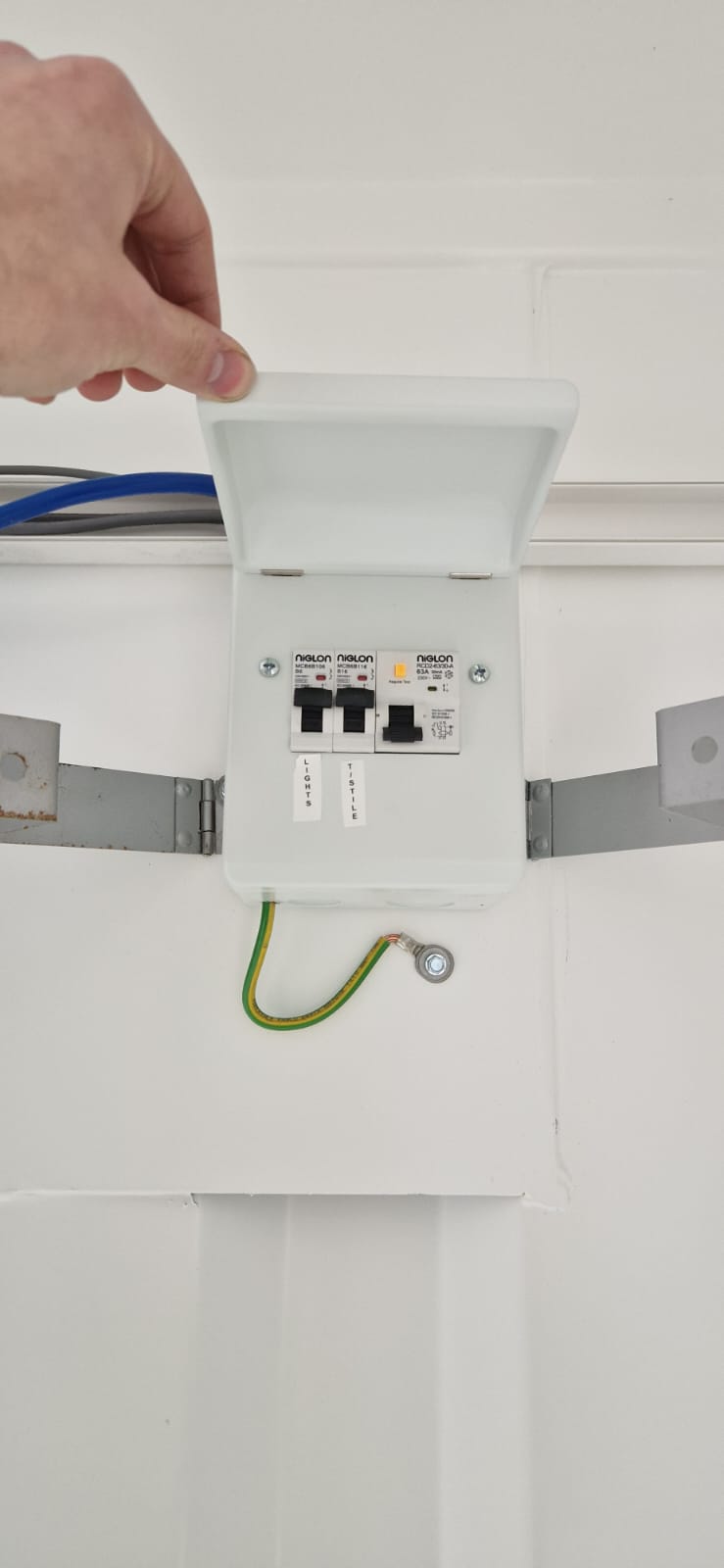

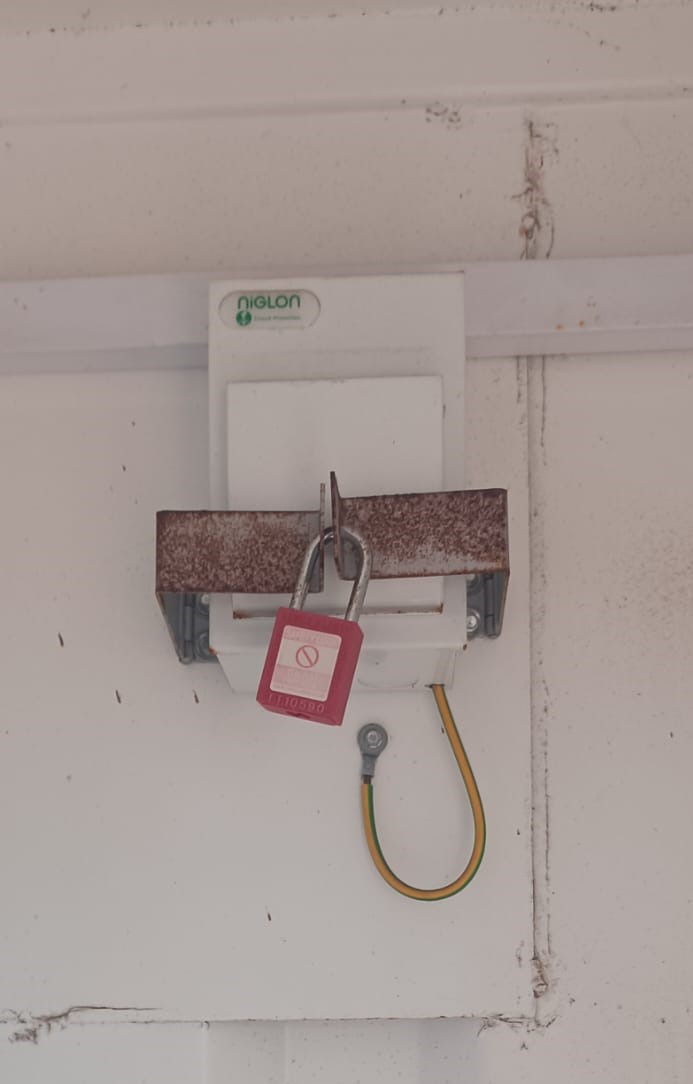

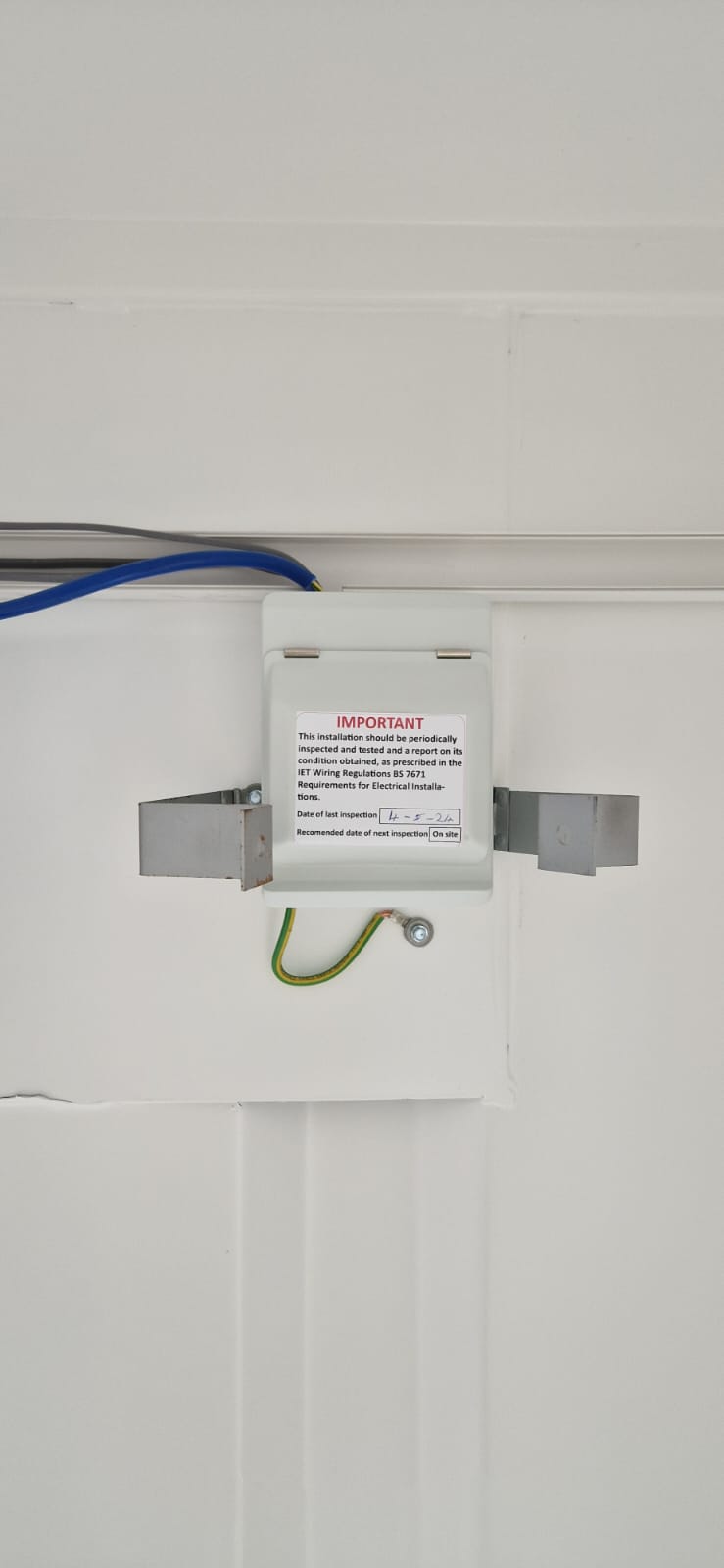

• Turnstile pod internal fuse board (the fuse board will be locked for safety)

• Site fuse board where turnstile is connected back to.

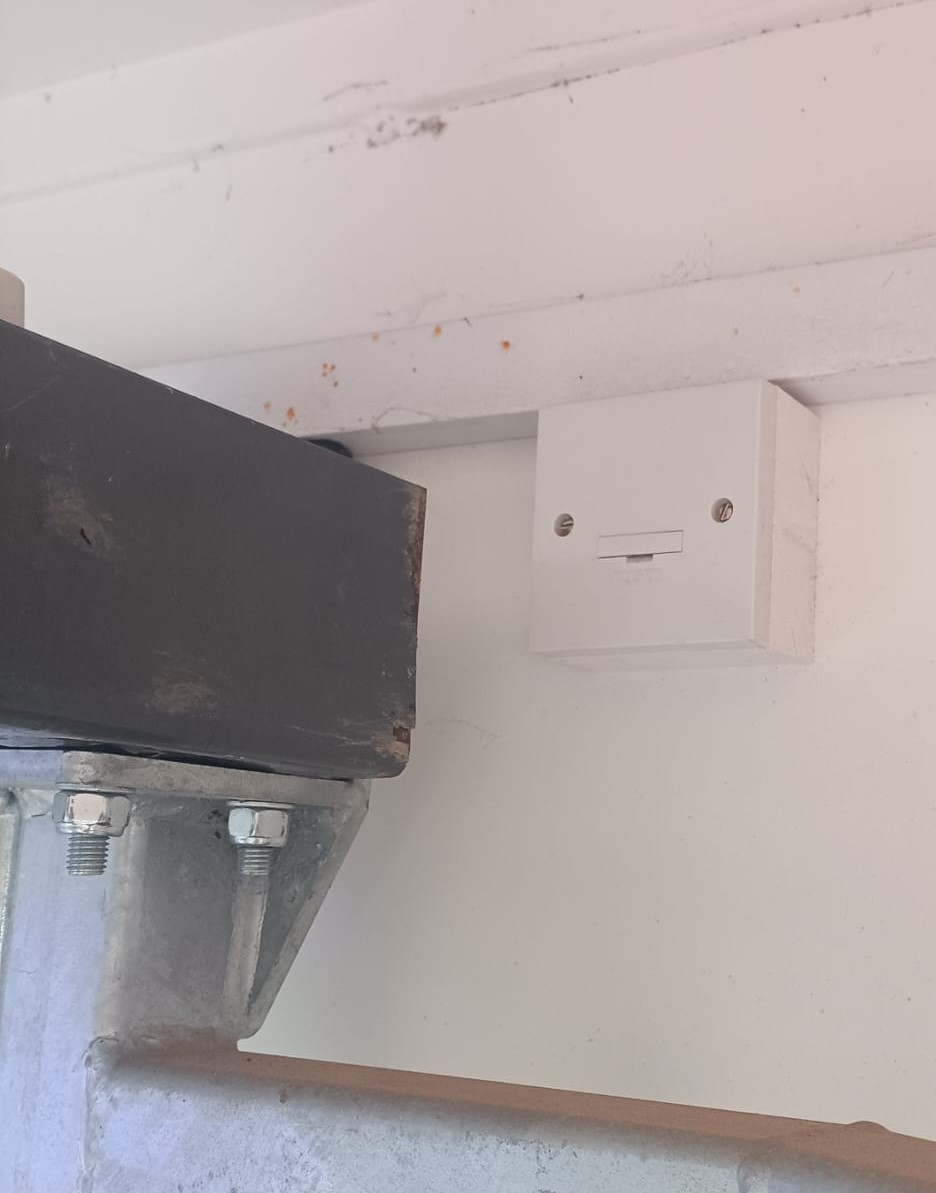

• On switch fused spurs. 13amps to be replaced.

If you have checked the above steps and the system is still not online, check out our next troubleshooting guide for turnstiles Turnstiles - Troubleshooting - Cut or damaged external CAT5 cables.
